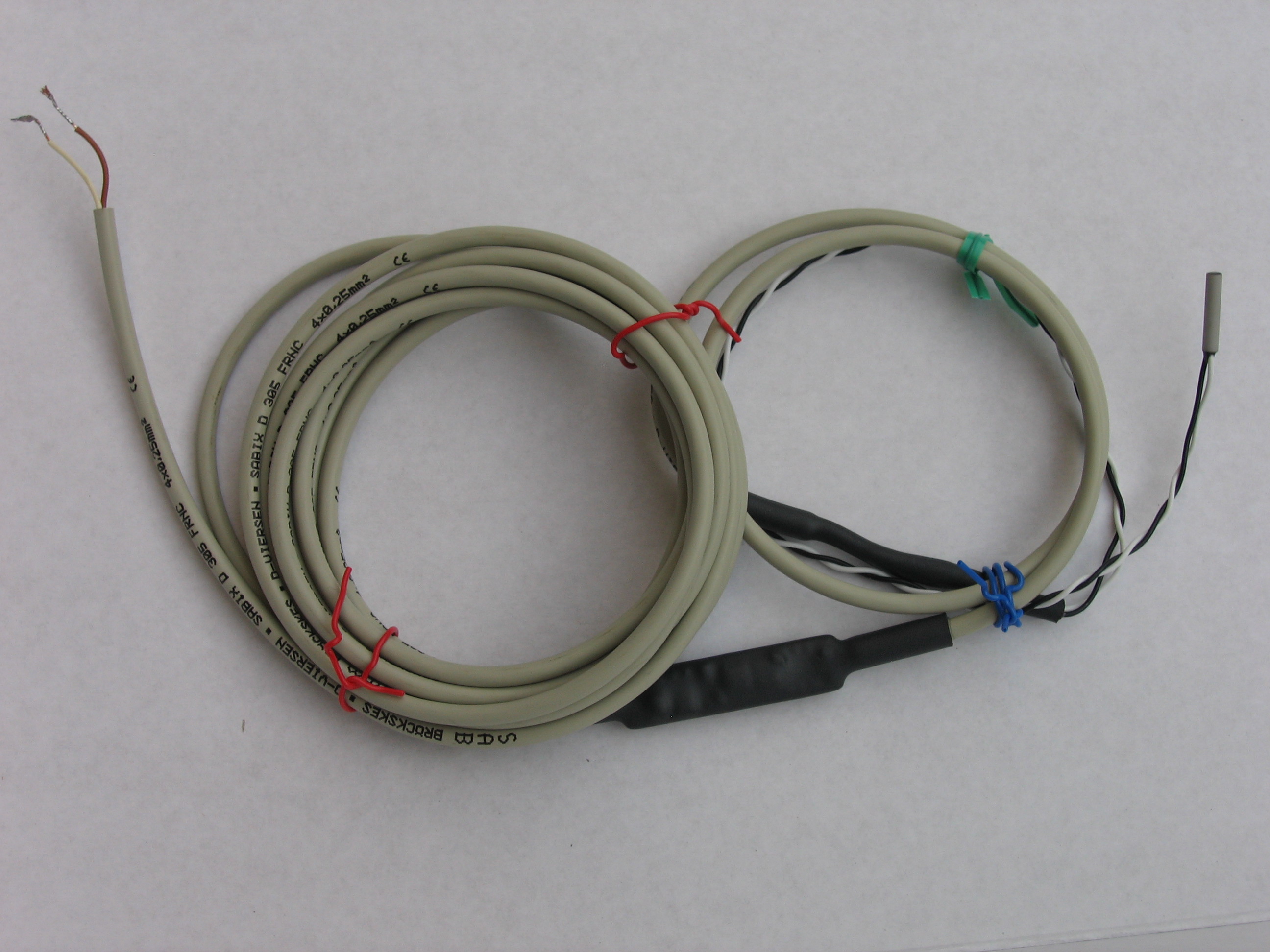

Pt1000 based OneWire temperature sensor





General description of the sensor

The TS09015 is a digital temperature sensor using the OneWire technology.



This sensor's core is the Pt1000 platinium sensor type HEL716



The main characteristics of that sensor are:

Temperature range -200°C to +260°C
Resistor at 0°C 1000 Ohms ±0,2%
Linearity between -40°C and +125°C

±0,1%
Linearity between -200°C et +540°C

±2%
Resolution ±0,5°C ou 0,6% (the biggest of both)



Downloads

File

Content






Price

Description Reference

Price
PT1000 One Wire temperature sensor TS09525 SFR 195.-- + SFR 1.-- for each meter of cable


For more information: info@pongo.info
