NEW: the units delivered since january 2024 are equipped on demand with a 3G or with a 4G modem while stock last. The already installed units are upgradable to 3G or to 4G. The new version is the OctoGSM4G.
2 channel remote control + Alarm transmitter with 6 criterias
Dialog by SMS using an integrated dual band GSM modem Dimensions: 145mm x 110mm x 90mm Clickable on a DIN rail You who:
And
Or
And more
Then the Octogsm 222 is the unit you need!

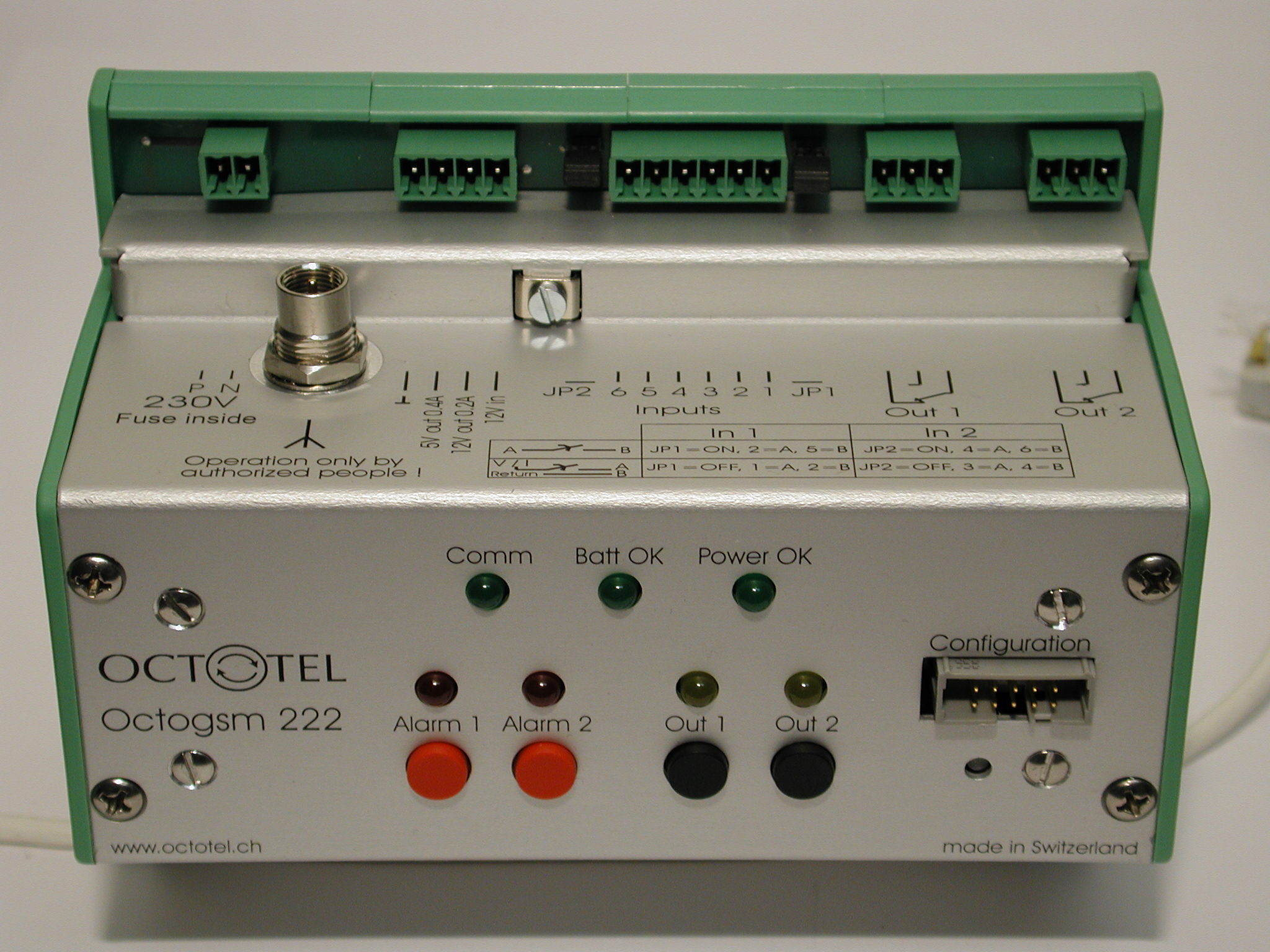

OctoGSM 222 is a unit allowing the control of 2 units or installations by SMS messages. OctoGSM 222 also allows to receive 2 alarms by the way of SMS messages on your cellular phone. OctoGSM 222 is easy to configure using a PC, an adaptor and a specific software running under Windows.
General descriptionThe OctoGSM 222 is a device allowing to control 2 relay outputs and to manage 6 alarm criterias by SMS. The OctoGSM 222 is equiped with a prepaid SIM card (Easy Card from Swisscom) avoiding to have to subscribe an abonment. The OctoGSM 222 is directly connected to the 230V. The OctoGSM 222 includes a 9V NiMH accumulator allowing to continue to run during at least 30 minutes ; even if the 230V is down. Every received message is acknowledge as long as we use a cellular phone to send the SMS (If the SMS comes from internet, no acknowledge SMS will be sent). The 4 buttons on the OctoGSM 222 can be enabled or disabled by a SMS. The status of the equipment can be known at every moment by SMS interrogation. The OctoGSM 222 stores in the non volatile memory of the SIM card all the messages intended to be sent as well as the device parameters.
The memory for 6 numbers for the alarms The OctoGSM 222 can manage up to 6 phone numbers for sending the pre-loaded SMS. These numbers can be cellular phones as well as faxes. Every alarm message must be sent to at least one destination but maximum at 6 of the 6 possible destinations.
The mains power supply The OctoGSM 222 is powered by the 230V, a connector is provided for that use.
The low voltave power suppliesThe OctoGSM 222 provides a low voltage connector allowing :
The available power is 5W max in total for both 12V and 5V outputs.
The alarms criteriasThe OctoGSM 222 has 2 external contacts criterias which can :
The multilingual configuration software of the OctoGSM 222 allows to delay the alarm activation (one or both) from 1s to 59 minutes 59 seconds.
The internal alarms criteriasIn addition to the 2 alarms inputs, the OctoGSM 222 has 4 internal alarms criterias : 1° One Power Fail alarm activated when the 230V fails (in reality the 12V internal or external). 2° One Low Bat alarm activated when the internal 9V accumulator is not enough charged. 3° One Low Units alarm activated when the SIM card (Swisscom Easy) card) has less than 100 units of communication (10 SFr) remaining. 4° One attention alarm is automatically sent after 6 months of SMS inactivity.
The outputsThe OctoGSM 222 provides 2 commutating relay outputs which can be controlled either by SMS or by the OUT buttons of the OctoGSM 222. Every output hax :
The outputs can also generate ON or OFF pulses ( 1s à 999s) but only by SMS
The configuration softwareThe configuration software of the OctoGSM 222 allows to read all the OctoGSM 222 parameters, to modify them, to backup them on a PC, to restore them form a PC and to write the new parameters into the OctoGSM 222. Advantages
Downloads for the new 4G model
Downloads for the 3G model
Downloads for the 2G model
Price
