2 channel remote control + Alarm transmitter with 9 criterias
Dialog by SMS using an integrated dual band GSM modem Dimensions: 107mm x 87.5mm x 58.7mm Clickable on a DIN rail You who:
And
Or
And more
Then the OctoGSM4G is the unit you need!

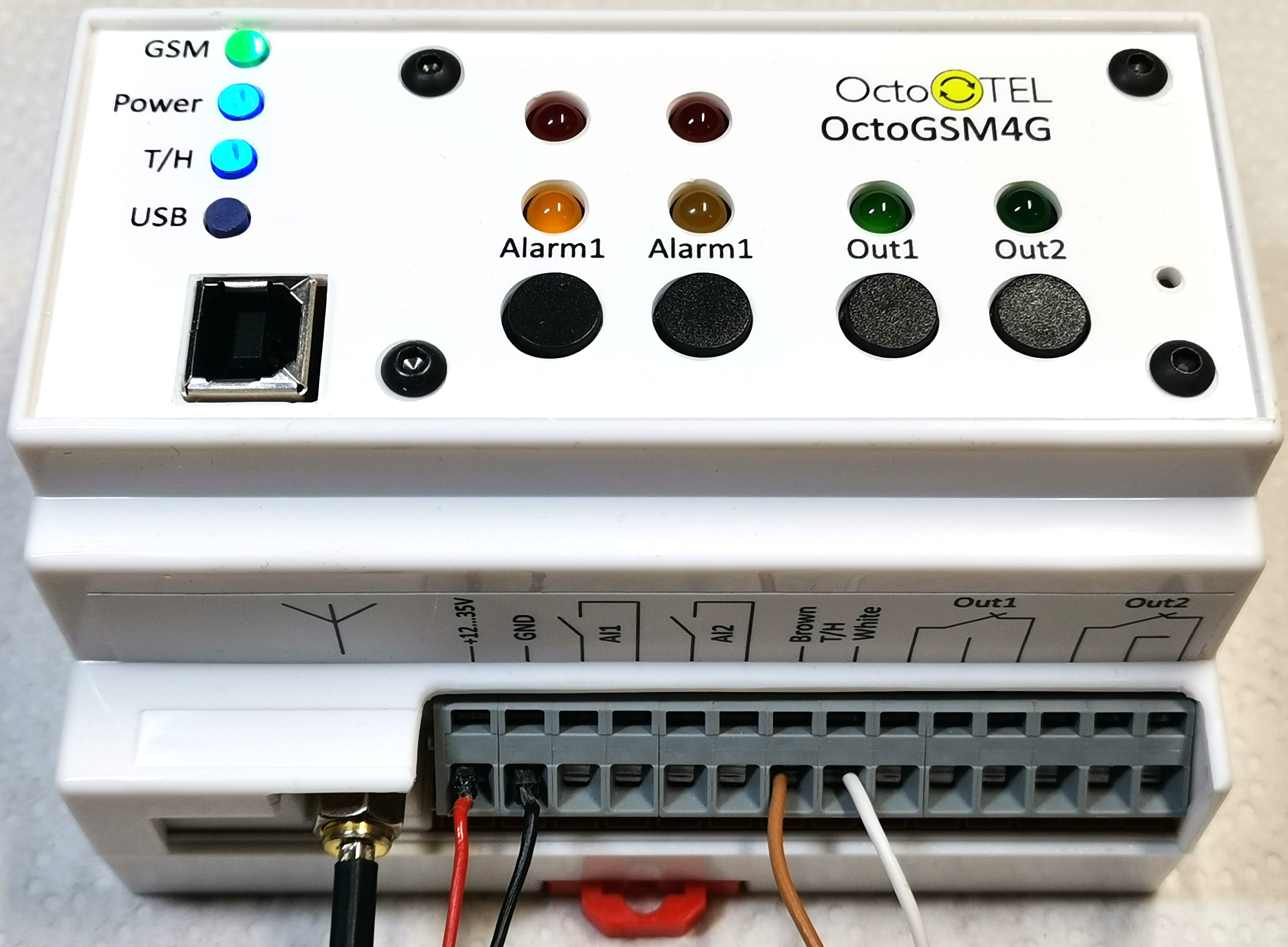

OctoGSM4G is a unit allowing the control of 2 units or installations by SMS messages. OctoGSM4G also allows to receive 2 alarms by the way of SMS messages on your cellular phone. OctoGSM4G is easy to configure using a PC and a specific software running under Windows.
General descriptionThe OctoGSM4G is a device allowing to control 2 relay outputs and to manage 6 alarm criterias by SMS. The OctoGSM4G-Swisscom is equiped with a prepaid Swisscom SIM card avoiding to have to subscribe a contract. The OctoGSM4G-Sunrise-Prepaid is equiped with a Sunrise prepaid SIM card avoiding to have to subscribe a contract. The OctoGSM4G-Sunrise-Postpaid is equiped with a Sunrise Postpaid card (contract). The OctoGSM4G-SFR is equiped with a SFR card (contract). The OctoGSM4G-Free is equiped with a Free card (contract). The OctoGSM4G is powered by an external 12V to 35V DC power supply. The OctoGSM4G includes a LiIon battery allowing to continue to run during at least 3 hours ; even if the external power supply is down. Every received message is acknowledge as long as we use a cellular phone to send the SMS (If the SMS comes from internet, no acknowledge SMS will be sent). The 4 buttons on the OctoGSM4G can be enabled or disabled by a SMS. The status of the equipment can be known at every moment by SMS interrogation. The OctoGSM4G stores in the non volatile memory of the SIM card all the messages intended to be sent as well as the device parameters.
The memory for 6 numbers for the alarms The OctoGSM4G can manage up to 6 cellular phone numbers for sending the pre-loaded SMS. Every alarm message must be sent to at least one destination but maximum at 6 of the 6 possible destinations.
The power supply The OctoGSM4G is powered by an external 12V to 35V DC power supply.
The alarms criteriasThe OctoGSM4G has 2 external contacts criterias which can :
The multilingual configuration software of the OctoGSM4GI allows to delay the alarm activation (one or both) from 1s to 59 minutes 59 seconds.
The internal alarms criteriasIn addition to the 2 alarms inputs, the OctoGSM4G has 6 or 7 internal alarms criterias : The two alarms available on both models are: 1° One Power Fail alarm activated when the external power supply fails. 2° One Low Bat alarm activated when the internal battery is not enough charged. 3° One SHUTDOWN alarm activated when the OctoGSM4G shuts down due to a too low level of the battery charge state. 4° One attention alarm is automatically sent after 6 months of SMS inactivity (prepaid card). 5° One Temperature alarm is activated when the measured temperature comes below a limit configured by software. 6° One Humidity alarm is activated when the measured humidity goes above a limit configured by software. The alarms 5 and 6 need an optional sensor: - temperature only sensor TS05017 if only the alarm 4 is needed. - temperature and humidity sensor HS05045 if both alarms 4 and 5 are needed. 7° One Low Units alarm activated when the SIM card (prepaid card) has less than 10 CHF remaining. WARNING: Due to the 2G to 3G modification, only the Swisscom operator gives this information. As far as now, for the Sunrise and Orange operators, le owner must check his remaining credit with the operator.
The outputsThe OctoGSM4G provides 2 commutating relay outputs which can be controlled either by SMS or by the OUT buttons of the OctoGSM4G. Every output has :
The outputs can also generate ON or OFF pulses ( 1s à 999s) but only by SMS
The configuration softwareThe configuration software of the OctoGSM4G allows to read all the OctoGSM4G parameters, to modify them and to write the new parameters into the OctoGSM4G.
