NEW: the units delivered since january 2024 are equipped on demand with a 3G or with a 4G modem while stock last. Once the stock of OctoGSM222DI is over, you can obtain OctoGSM222D transformed in OctoGSM222DI-4G. The already installed units are upgradable to 3G or to 4G. The new version is the OctoGSM4G.
2 channel remote control + Alarm transmitter with 4 criterias
Dialog by SMS using an integrated dual band GSM modem Dimensions: 107mm x 90mm x 70mm Clickable on a DIN rail You who:
And
Or
And more
Then the OctoGSM222DI is the unit you need!

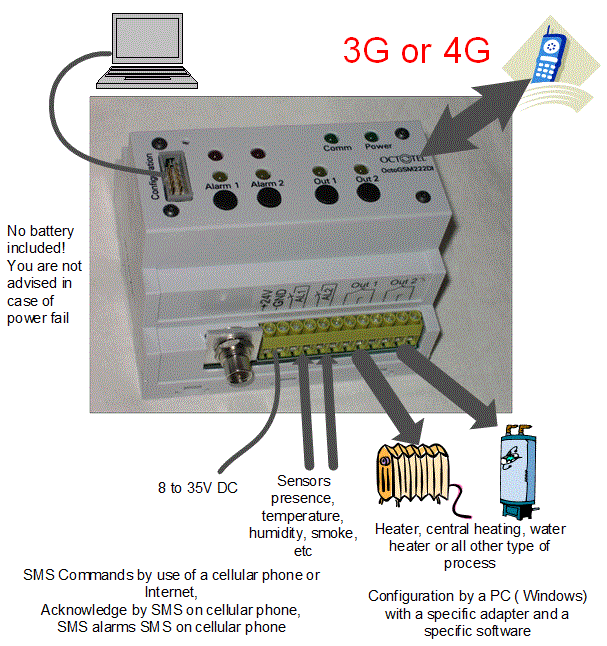

OctoGSM222DI is a unit allowing the control of 2 units or installations by SMS messages. OctoGSM222DI also allows to receive 2 alarms by the way of SMS messages on your cellular phone. OctoGSM222DI is easy to configure using a PC, an adaptor and a specific software running under Windows.
General descriptionThe OctoGSM222DI is a device allowing to control 2 relay outputs and to manage 4 alarm criterias by SMS. The OctoGSM222DI-Swisscom is equiped with a prepaid SIM card avoiding to have to subscribe a contract. The OctoGSM222DI-Sunrise-Prepaid is equiped with a prepaid SIM card avoiding to have to subscribe a contractt. The OctoGSM222DI-Sunrise-Postpaid is equiped with a Sunrise Postpaid card (subscription). The OctoGSM 222D-SFR is equiped with a SFR contract card. The OctoGSM 222D-Free is equiped with a Free contract card. The OctoGSM222DI is powered by an external 8V to 35V DC power supply. Every received message is acknowledge as long as we use a cellular phone to send the SMS (If the SMS comes from internet, no acknowledge SMS will be sent). The 4 buttons on the OctoGSM222DI can be enabled or disabled by a SMS. The status of the equipment can be known at every moment by SMS interrogation. The OctoGSM222DI stores in the non volatile memory of the SIM card all the messages intended to be sent as well as the device parameters.
The memery for 6 numbers for the alarms The OctoGSM222DI can manage up to 6 phone numbers for sending the pre-loaded SMS. These numbers can be cellular phones as well as faxes. Every alarm message must be sent to at least one destination but maximum at 6 of the 6 possible destinations.
The power supply The OctoGSM222DI is powered by an external 8V to 35V DC power supply.
The alarms criteriasThe OctoGSM222DI has 2 external contacts criterias which can :
The multilingual configuration software of the OctoGSM222DI allows to delay the alarm activation (one or both) from 1s to 59 minutes 59 seconds.
The internal alarms criteriasIn addition to the 2 alarms inputs, the OctoGSM222DI equipped with a prepaid card has 2 internal alarms criterias : 1° One Low Units alarm activated when the SIM card (prepaid card) has less than 10 CHF remaining. WARNING: Due to the 2G to 3G modification, only the Swisscom operator gives this information. As far as now, for the Sunrise and Orange operators, le owner must check his remaining credit with the operator. 2° One attention alarm is automatically sent after 6 months of SMS inactivity.
The outputsThe OctoGSM222DI provides 2 commutating relay outputs which can be controlled either by SMS or by the OUT buttons of the OctoGSM222DI. Every output hax :
The outputs can also generate ON or OFF pulses ( 1s à 999s) but only by SMS.
The configuration softwareThe configuration software of the OctoGSM222DI allows to read all the OctoGSM222DI parameters, to modify them, to backup them on a PC, to restore them form a PC and to write the new parameters into the OctoGSM222DI.
Advantages
Downloads for the 4G version
Downloads for the 3G version
Downloads for the 2G version
Price
