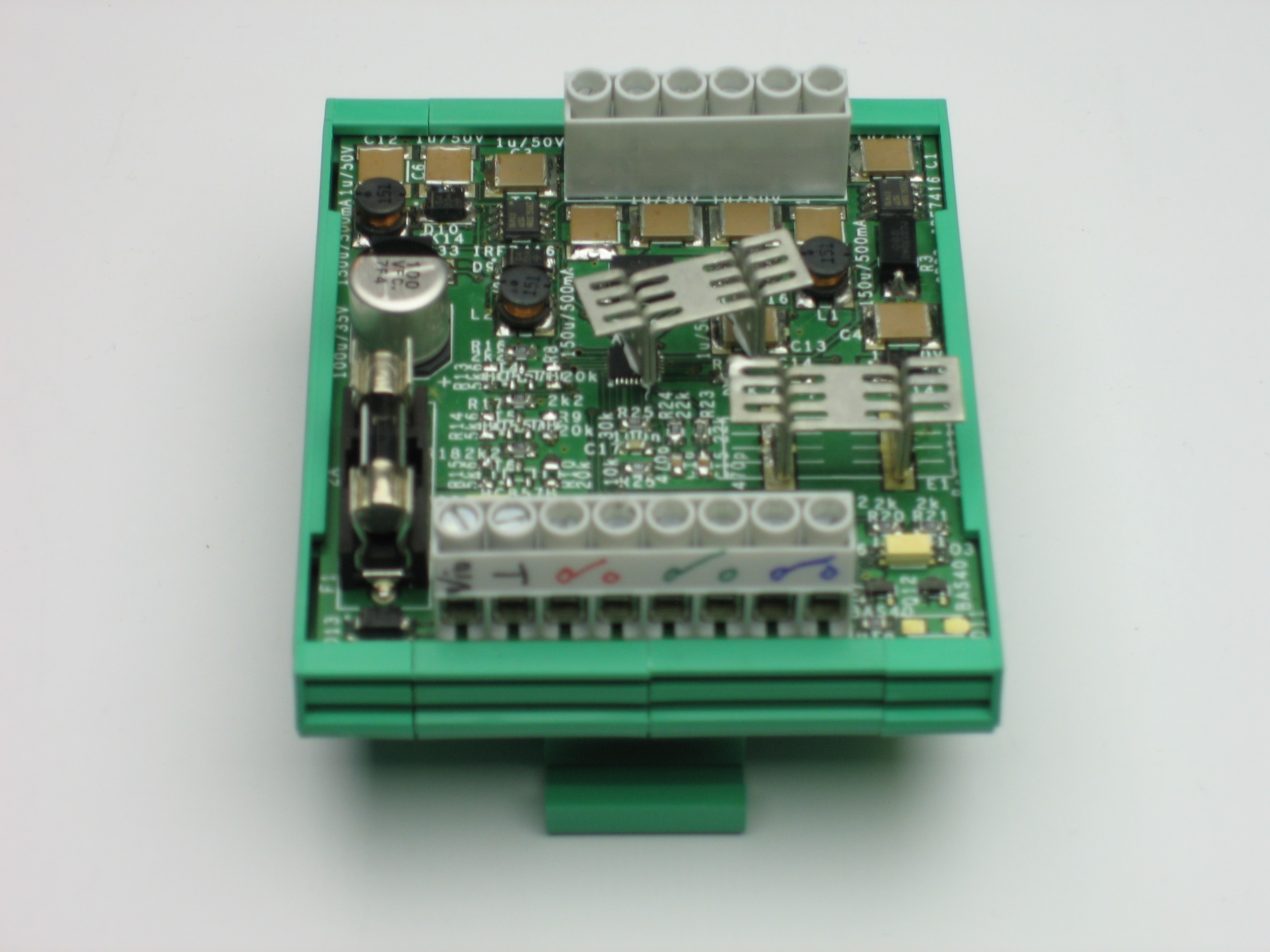

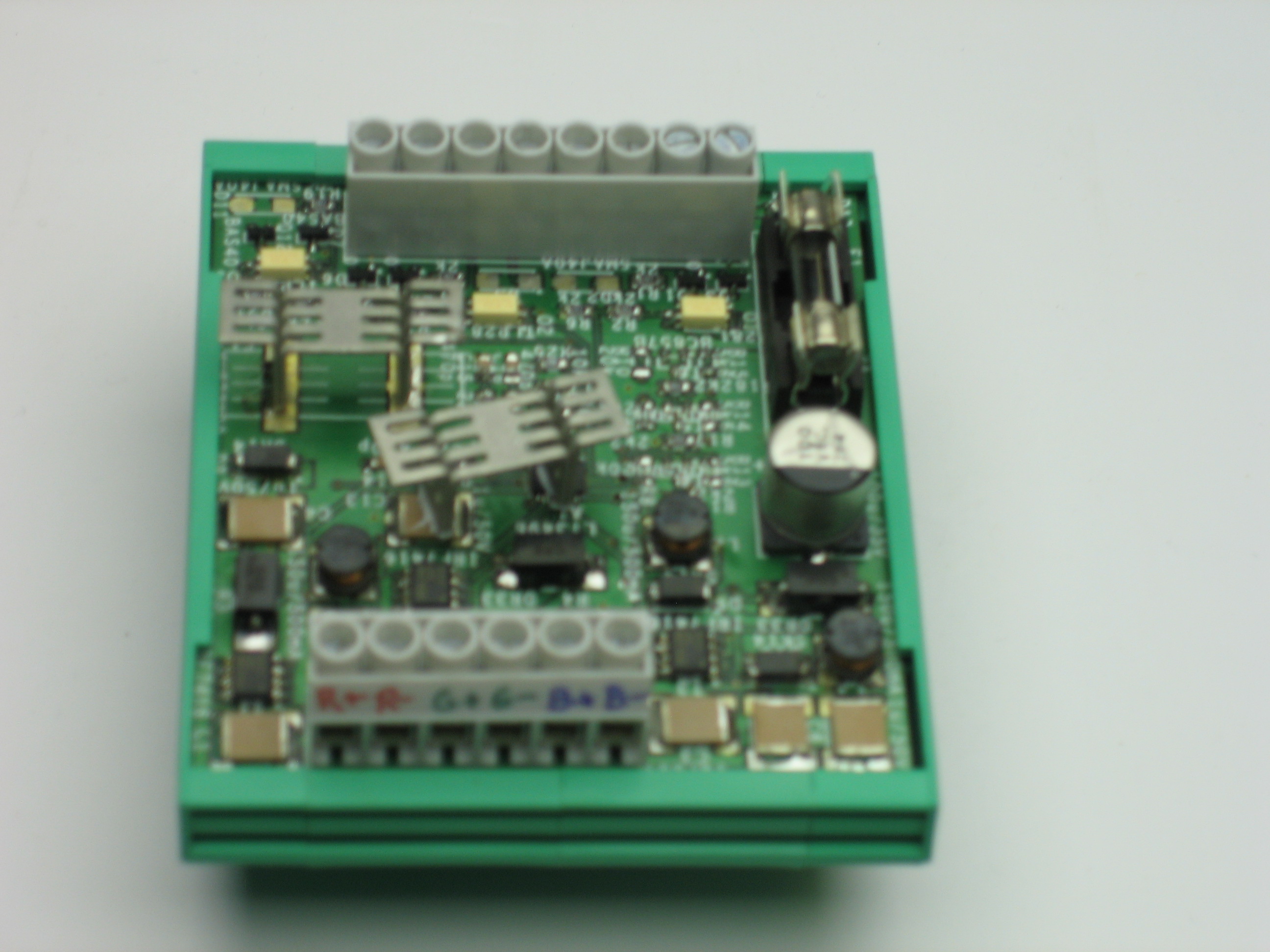

RGB 3x350mA LEDs projector command unit





 Dimensions: 67mm x 77mm x 40mm

Clickable on a DIN rail





Allows to control a RGB 350mA leds projector.

Current for each color: 350mA.

When powered with 24VDC, up to 3 projectors can be serially connected.

Optocoupled ON-OFF command input for each color, voltage-free contact or

Dimmable by PWM (PWM = 1 => led ON

Powered by 12-30VDC

Advantages

bulletInnovative and easy solution for RGB led projector control.
bulletPossibility to modify each color current by PWM on ON-OFF inputs
bulletLow cost

Price

Description Reference

End user price
TOLD350 Triple Output Led Driver E08510 contact us
